P03

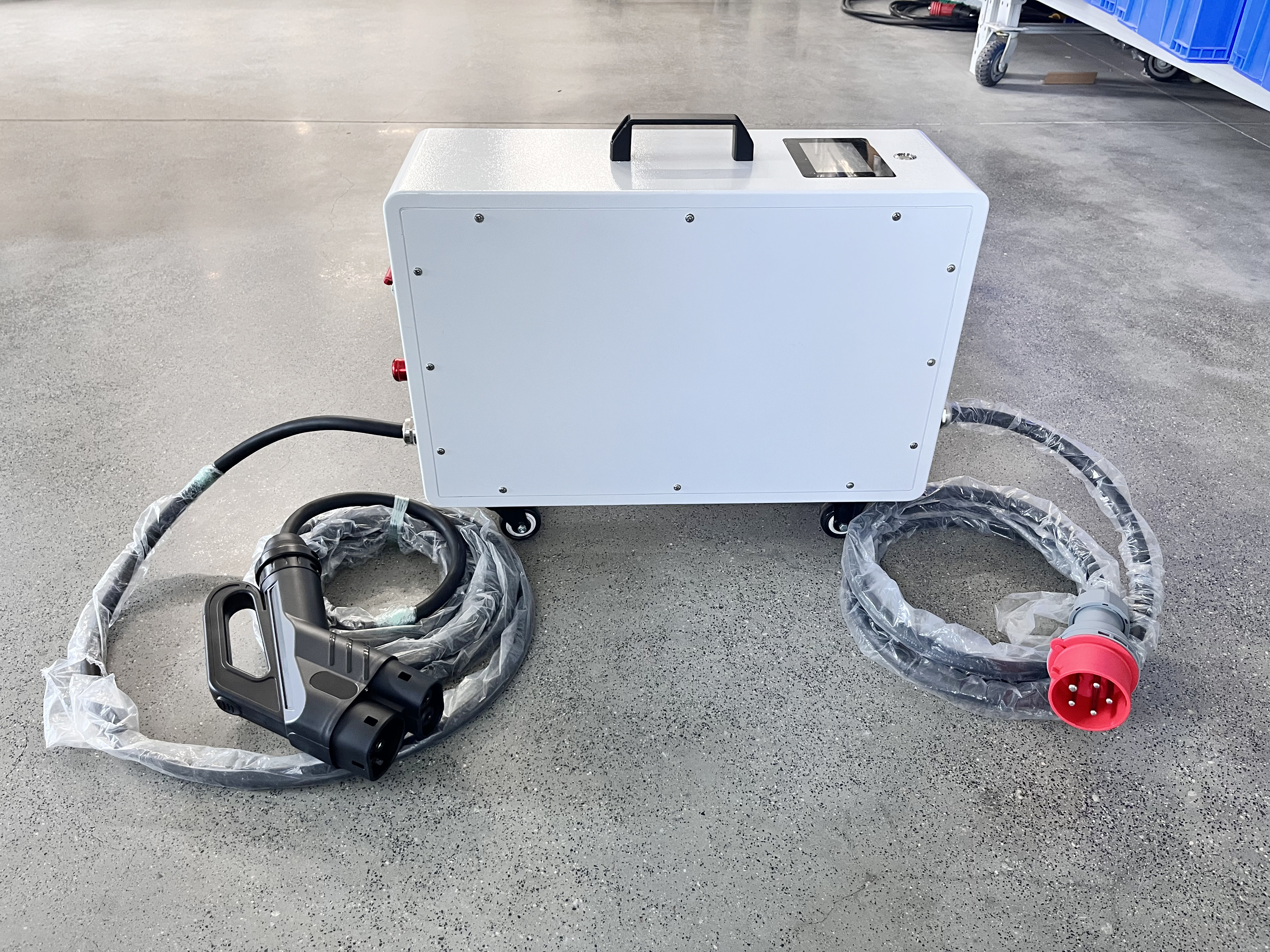

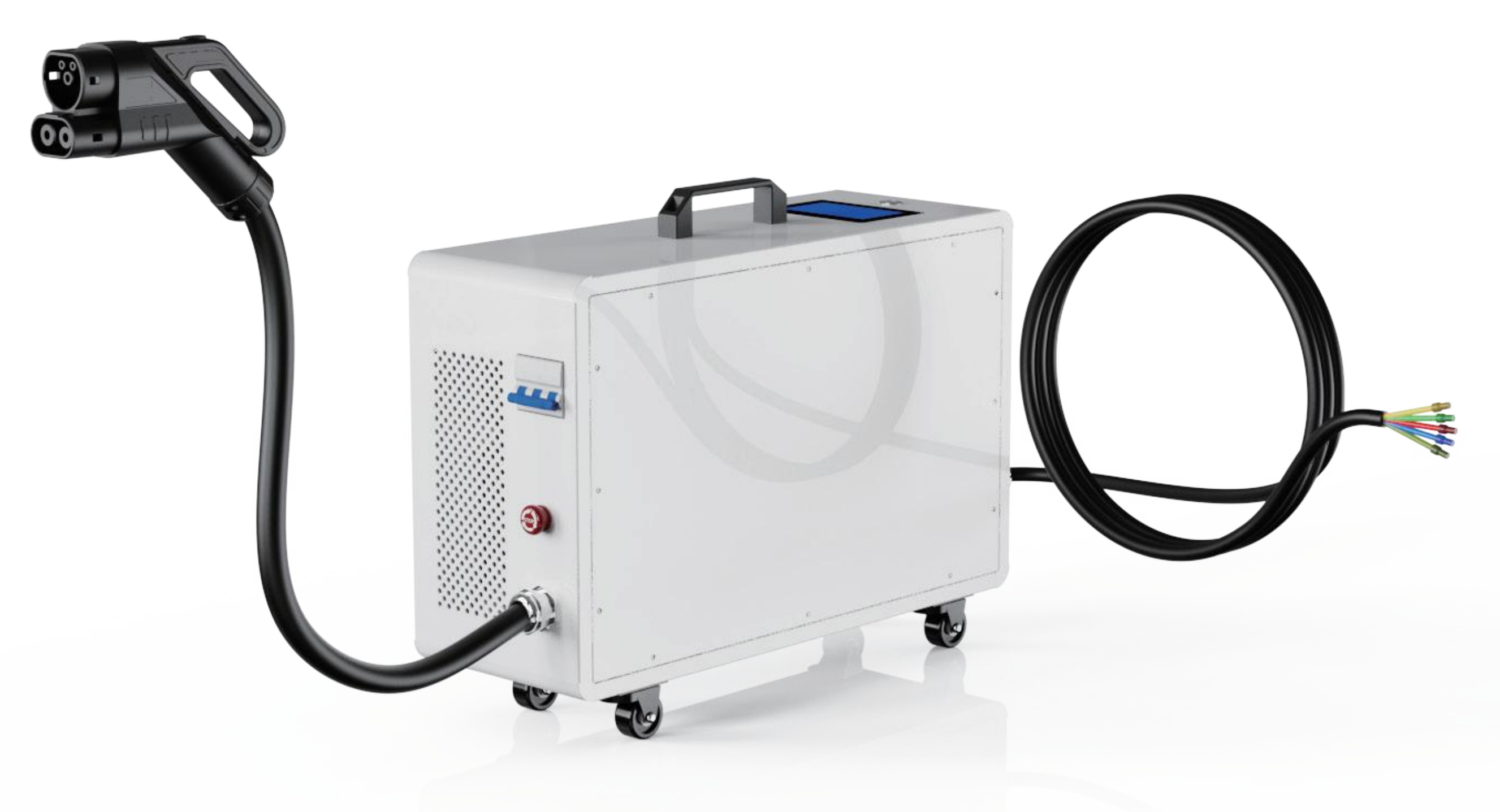

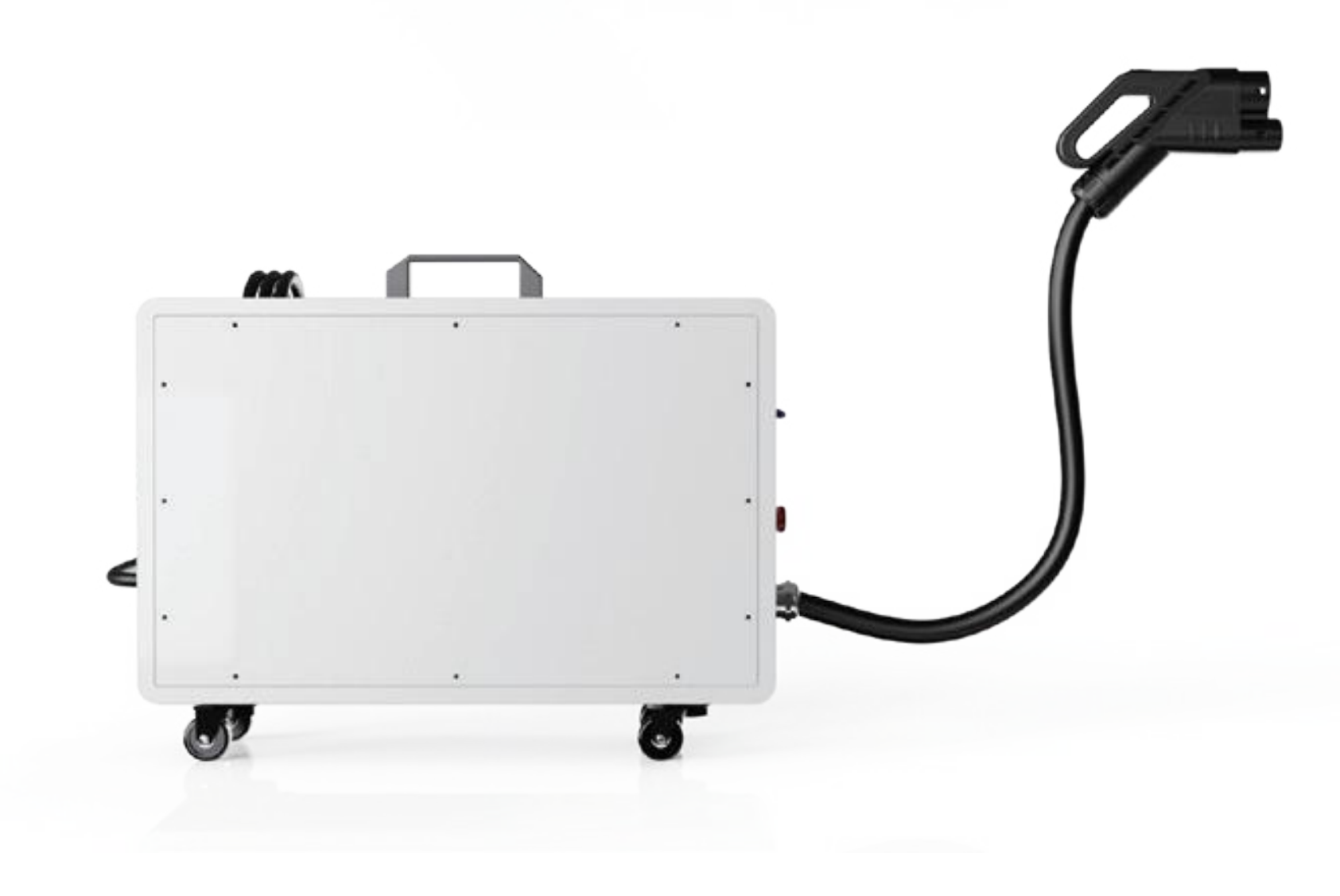

20KW Movable Charging Station

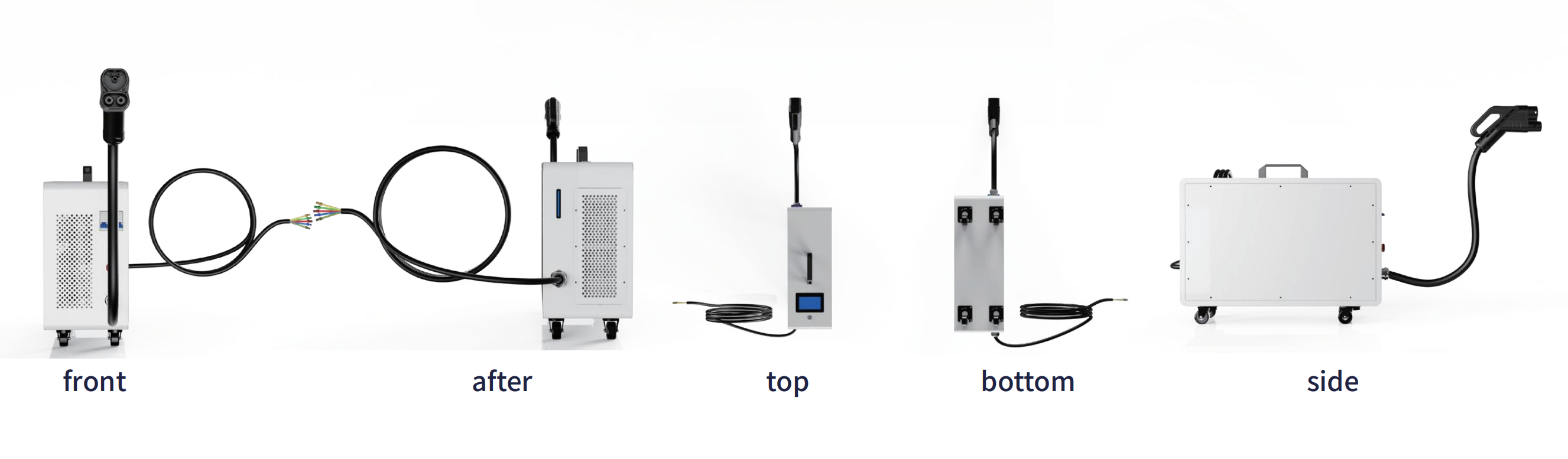

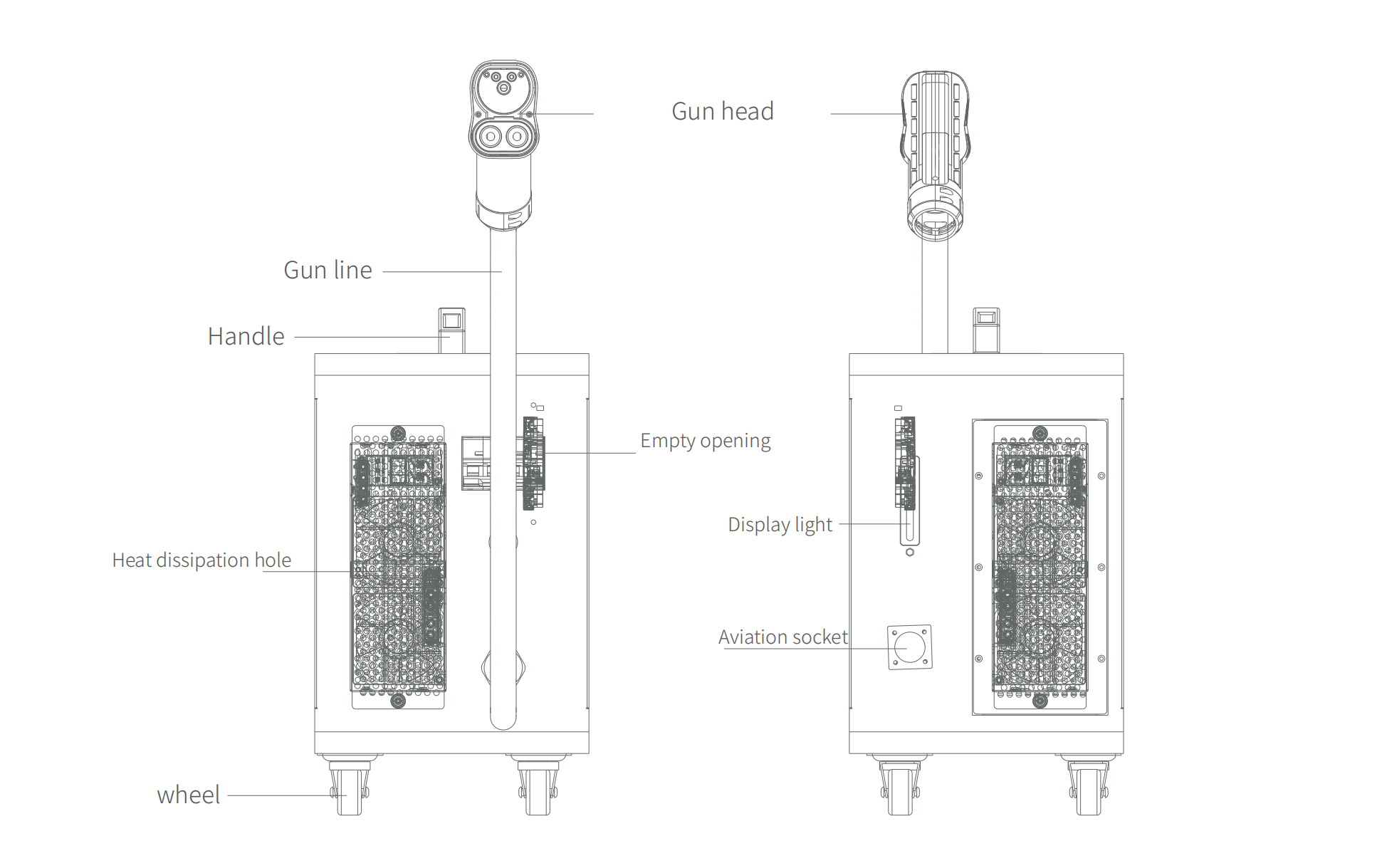

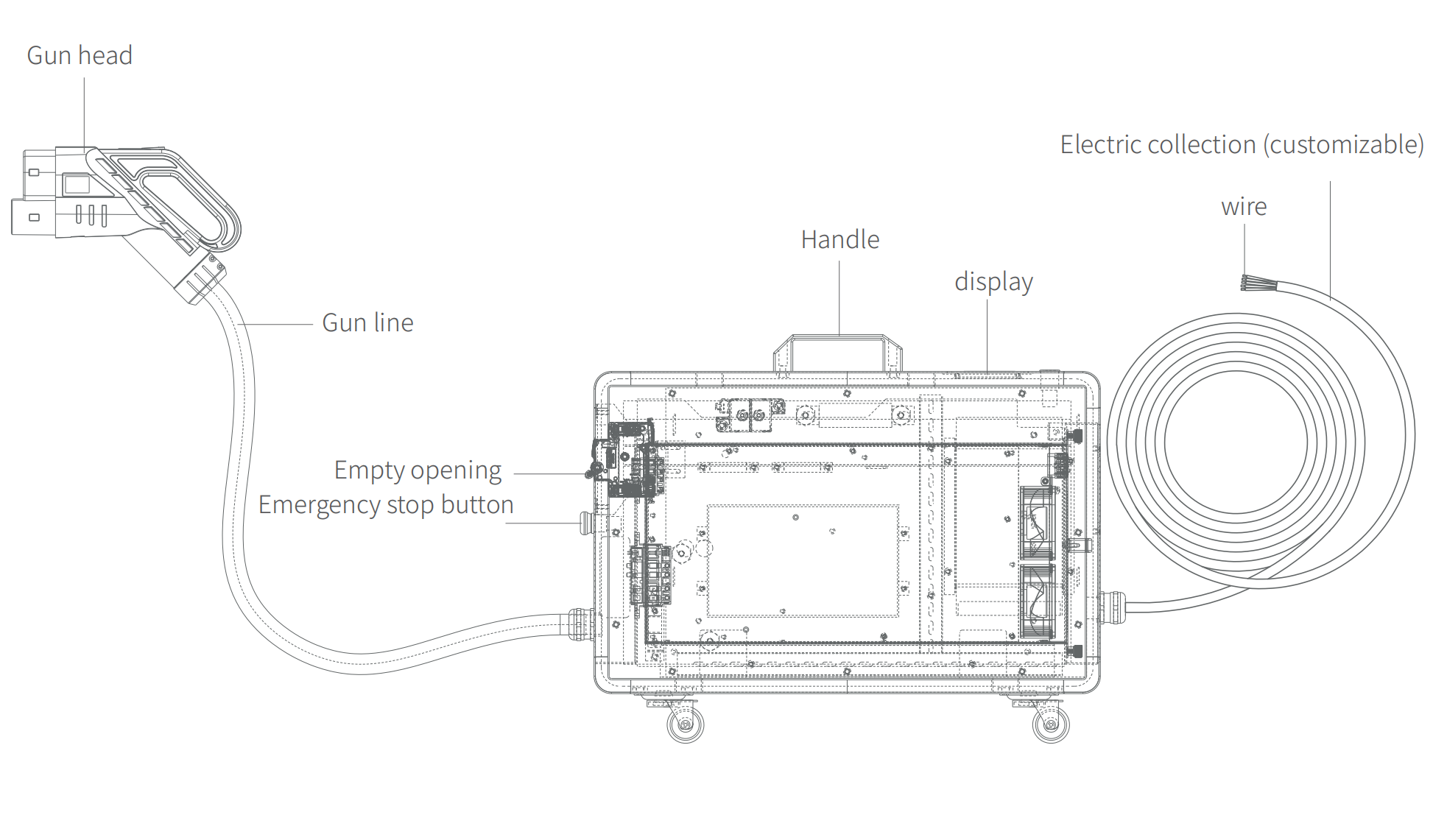

Appearance
|
Rated input voltage |
AC380W |
|
Input voltage |
AC 1-65A |
|
Rated output power |
20KW |
|
Charging method |
Press the button to start/stop |
|
Protection functions |
overvoltage, undervoltage, overcurrent,short circuit, leakage protection, etc |
|
IP Rating |
IP54 |
|
Cable Length |
3 meters（can be customization） |
|
Work environment |
Max. altitude:<2000m,temperature: -20℃~65℃,derating work above 50°C |
|
Dimension |
580mm*20mm*500mm(length * width * height),
excluding wheels |
|
Number of charging guns |
1
|
|
Human computer interaction |
4.3-inch resistive screen |
|
Ralative Humidity |
5% - 95% RH (non-condensing) |
|
Output Standard |
CCS2
|
|
Design standards |
IEC-61851, ISO-15118 |
|
Working Temperature |
-25°C to 40°C |

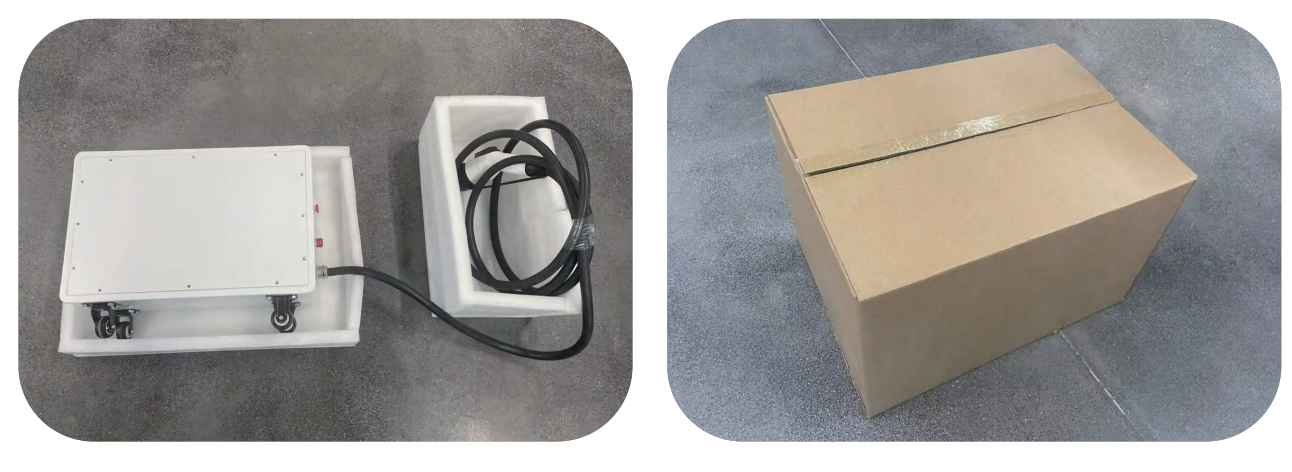

Product Packaging
