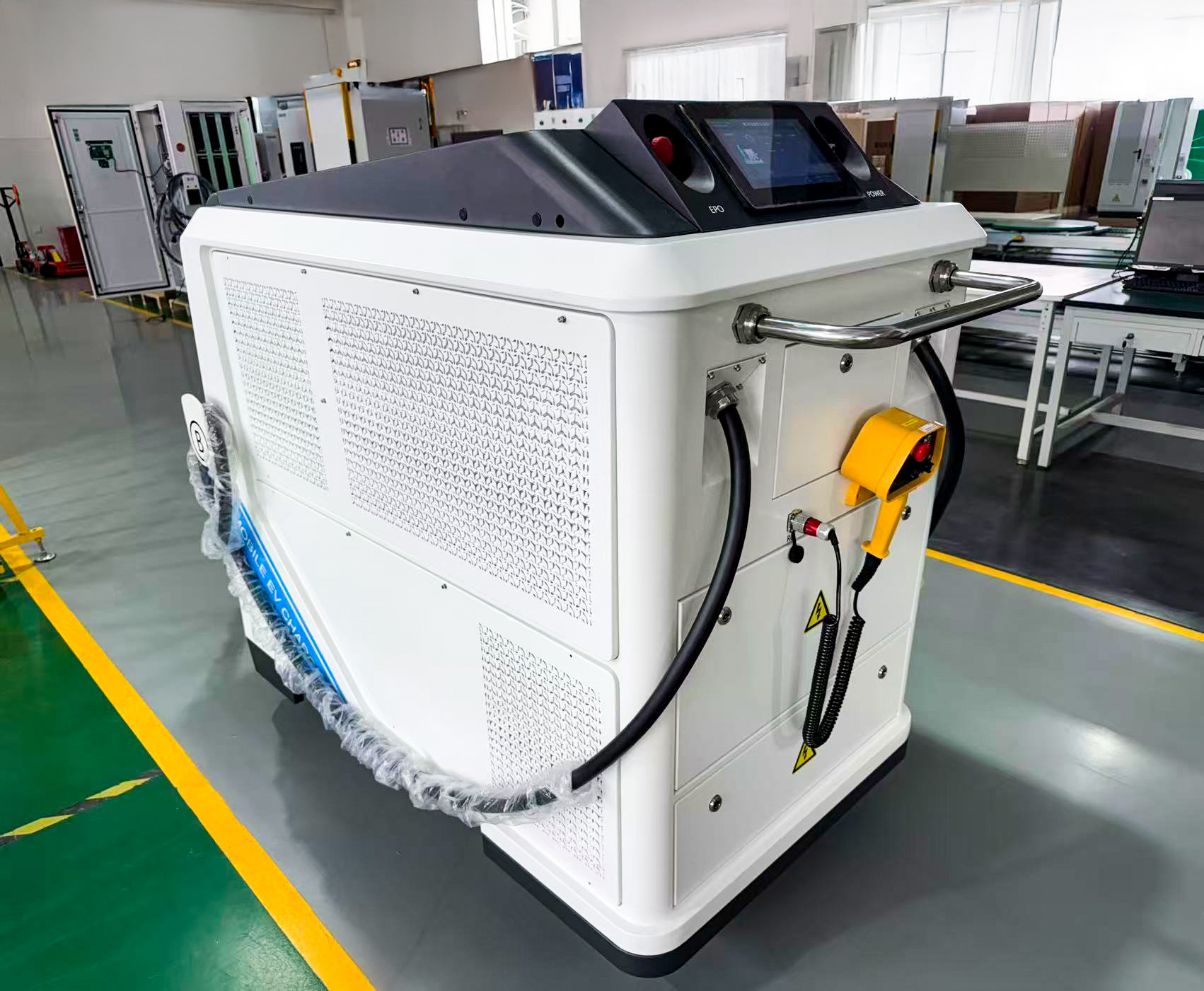

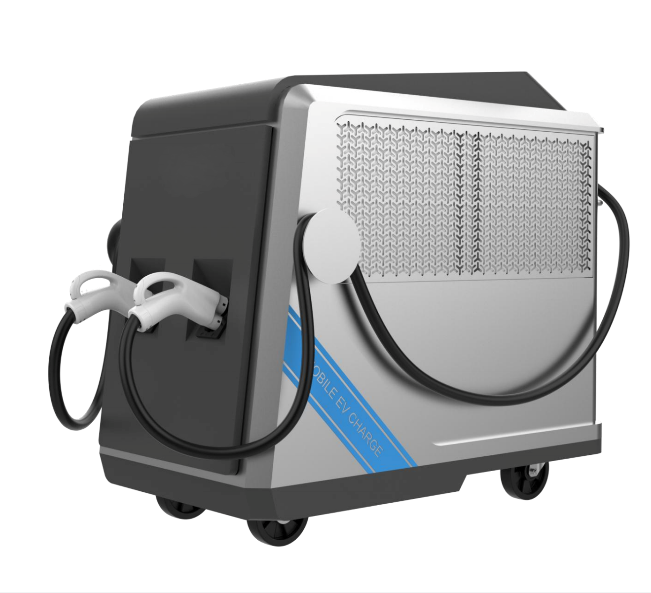

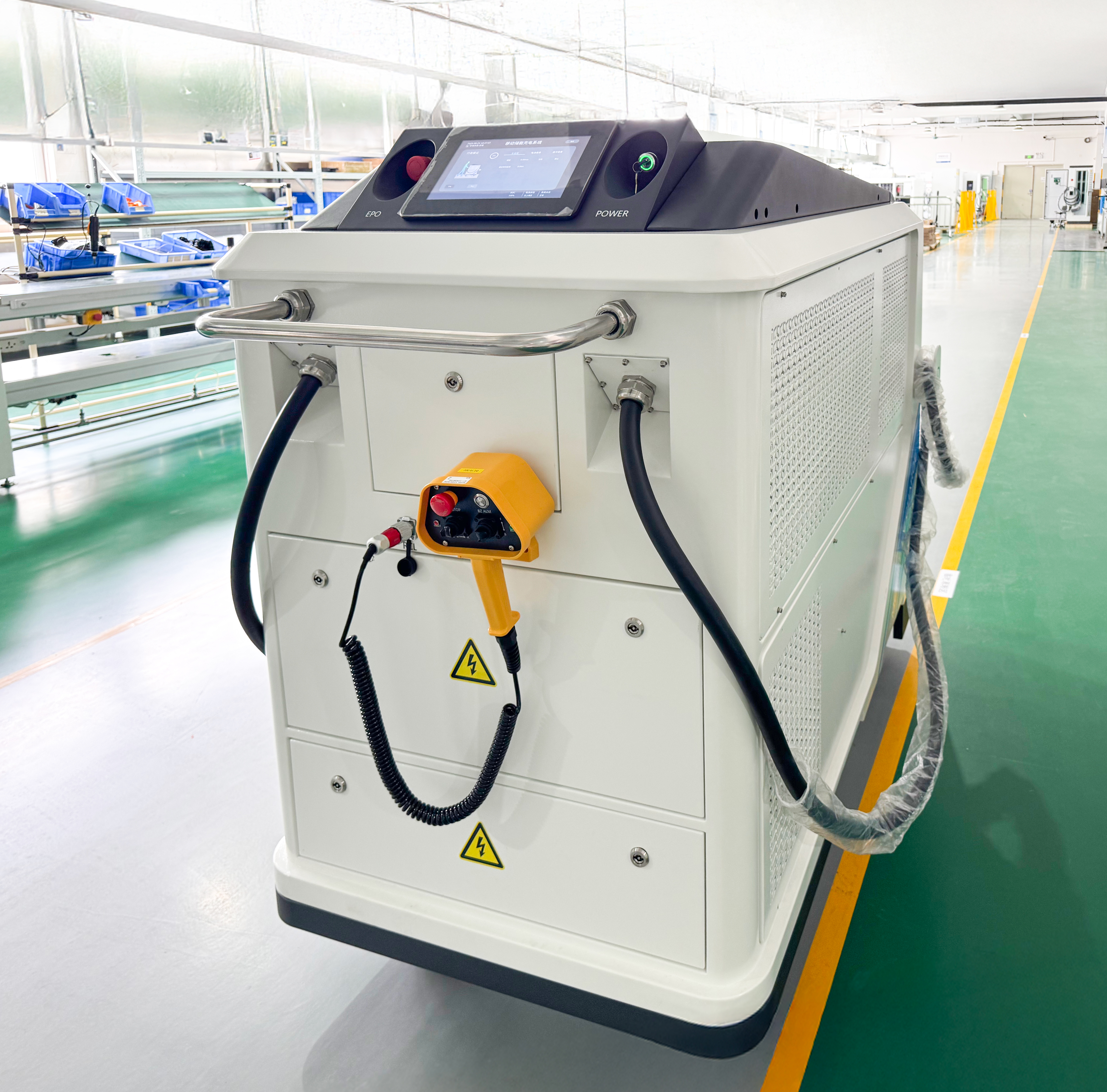

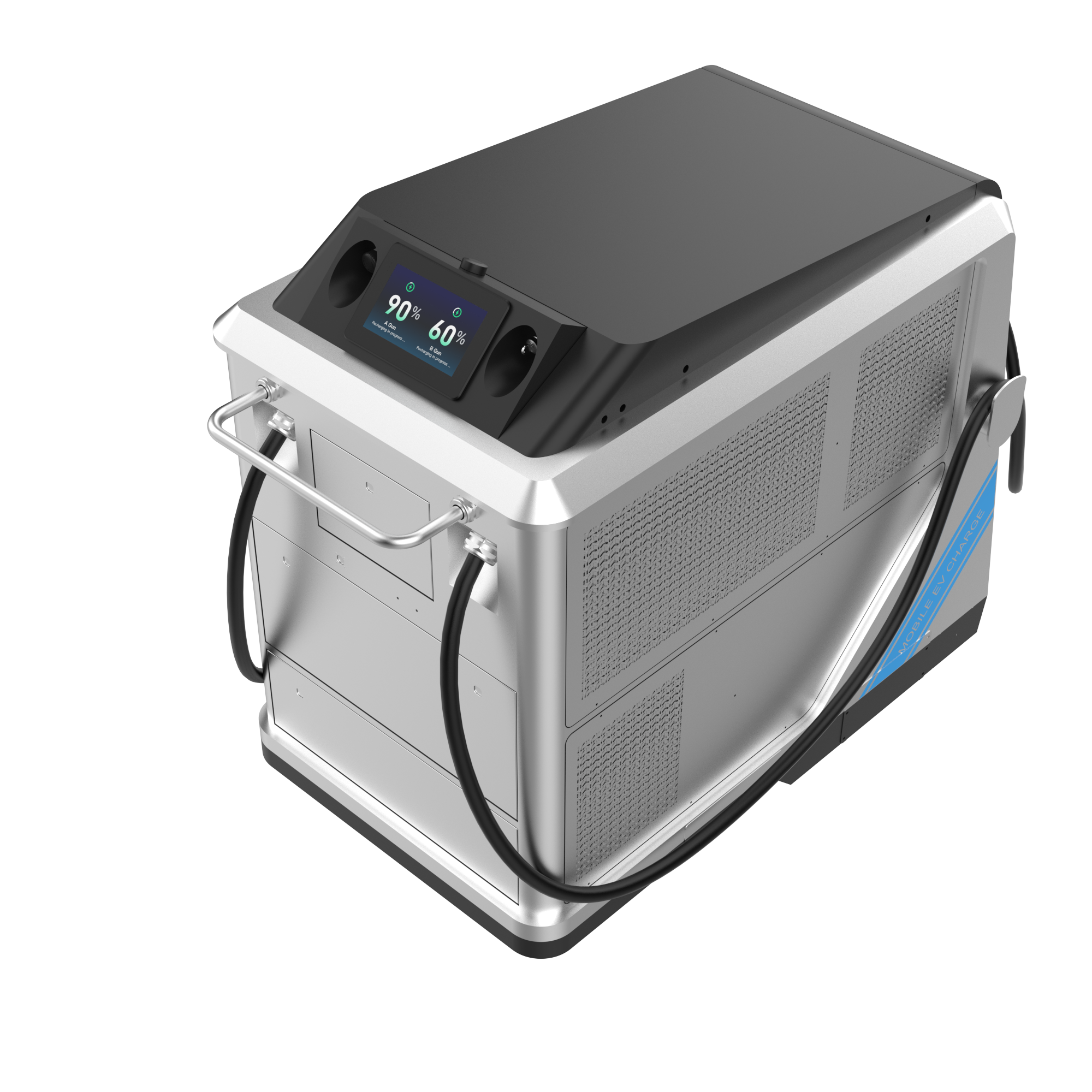

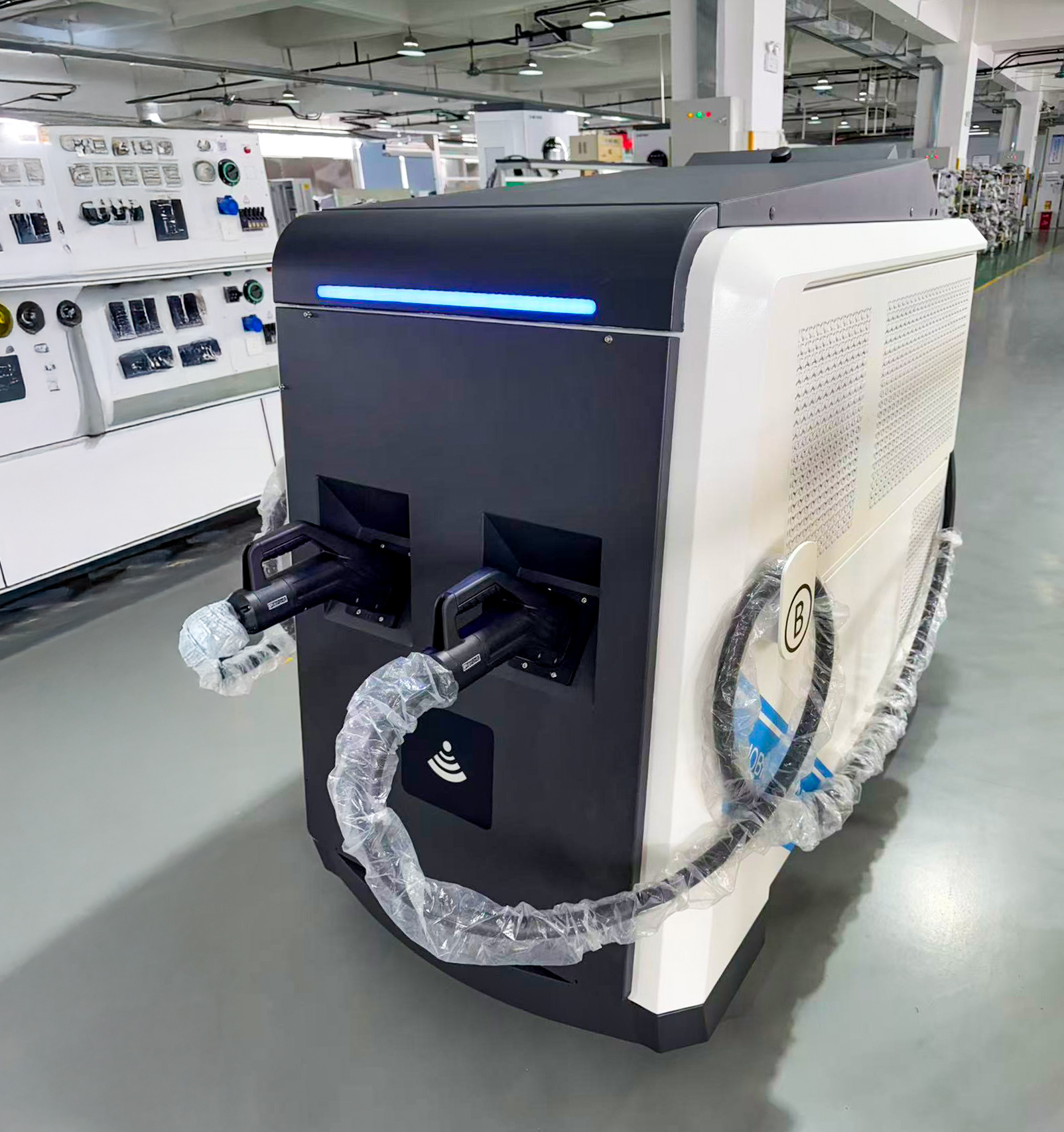

eNomad
eNomad is an intelligent movable EV Charging System, with 40kWh battery capacity, support 80kW fast charging. It has an electric drive chassis, can climb slopes over 10% and offers electric parking and braking for safe, flexible movement.
Application Scenarios
Commercial EV Charging Station, Highway Service Area, 4S Dealership, Electric Vehicle Charging.
Easy To Move
It has an electric drive chassis, can be easily pushed.
High-quality Configuration
BYD LiFePO4 battery cell, liqiud cooling, CCS1/CCS2 charging interface
Sheet metal, C4 Anti-corrosion Grade.
| Technical Parameters | |
| Battery Capacity | 40kWh |
| Battery Type | BYD LiFePO4 Battery |
| Cycle Life | >7000 cycles (90%DOD, 80%EOL) |
| Charging Power | 80KW/Dual-gun |
| Charging Interface | CCS1/CCS2 |
| Output Voltage | 200~1000Vdc |
| DC input | 200A(CCS1/CCS2) |
| AC 3 Phase input | 40KW |
| AC Single Phase input | 14KW |
| Charging Input Interface | Standard DC Charging Interface |
| Number of Charging Gun Cables | Two, 5M |
| Thermal Management Mode |
Liqiud Cooling
|
|
Waterproof Grade
|
Overall machine IP54
|
|
Mobility Mode
|
Manually push
|
|
Climbing Degree
|
10
|
|
Communication Mode
|
4G / 5G
|
|
Communication protocol
|
OCPP1.6J
|
|
Display
|
10.1-inch LCD Screen, Resolution 1920*1080
|
|
Operating Temperatrue
|
‘-20℃~55℃
|
|
Weight
|
≤ 00Kg
|
|
Dimensions(L×W×H)
|
1522*878*1400mm
|
