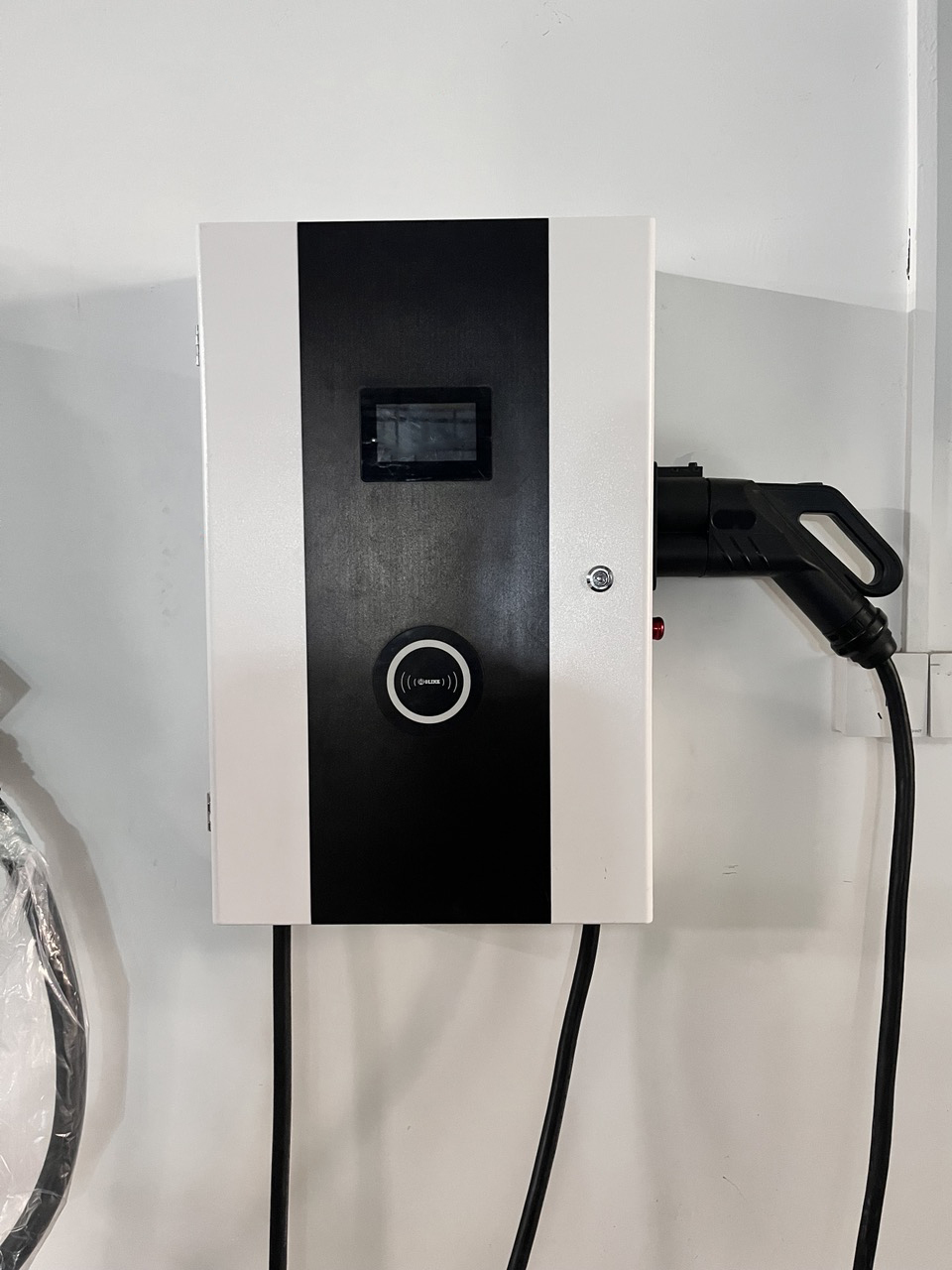

Appearance
|
Rated input voltage |
380Vac ± 20%(three-phase) |
|
Rated input voltage |
30kW |
|
Maximum input current |
80A(Three phase) |
|
Output constant power range |
1~100A |
|
Voltage stabilization accuracy |
≤+0.5% |
| Output Voltage |
Within the range of 100-1000V |
|
Charging method |
Swipe card charging, button charging |
|
Protection function |
Overcurrent, Overvoltage, Undervoltage, Leakage Protection |
|
Protection grade |
IP54 |
| Charging Interface | CCS2 |
|
Exposed gun line length |
Standard configuration of 3 meters (customizable) |
|
work environment |
Altitude:<2000m, temperature:- 20°C~65 °C, derating work above 50°C
|
|
External dimensions |
439*144*678(mm)
|
|
Number of charging guns |
ONE
|
|
human-computer interaction |
4.3-inch screen
|
|
operation temperature |
-25℃ to 40 ° C |
|
humidity |
5% -95% RH (no condensation)
|
|
Design standards |
IEC-61851.IS0-15118
|
Product Packaging
